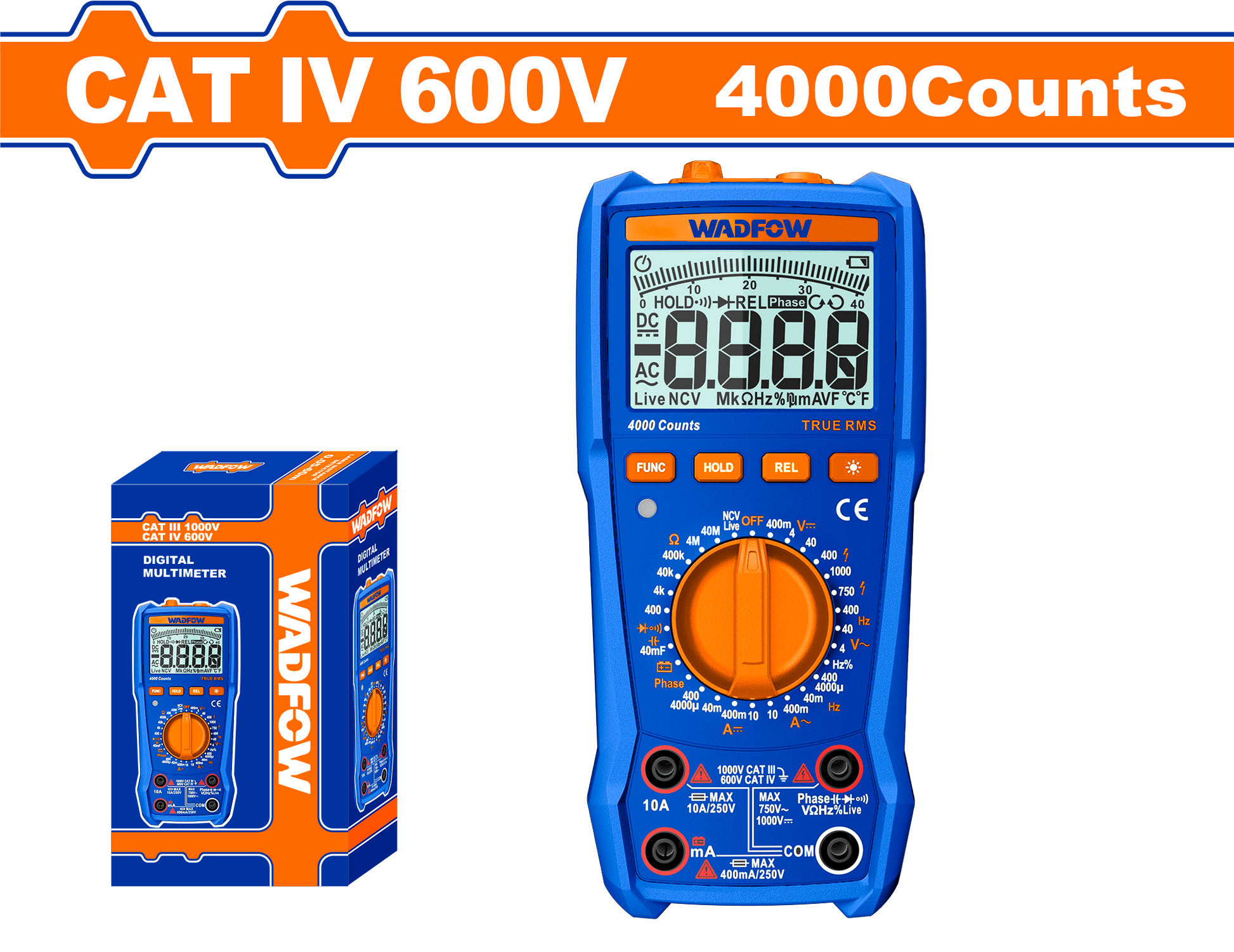

WADFOW MULTIMETER DIGITAL 600V CATIV RMS 4000 + BAT

The WADFOW WDM2502 Digital Multimeter is a high-precision, professional-grade measuring tool engineered for accurate testing of electrical parameters. Featuring True RMS measurement, phase sequence detection, and non-contact voltage testing, it delivers versatility and reliability for electricians, technicians, and advanced DIY users.

• Display: 4,000-count True RMS LCD display with backlight for easy readability.

• Functions: Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, and diode.

• Phase Sequence: Built-in phase sequence measurement function for 3-phase circuit testing.

• Non-Contact Voltage Detection: Safely identifies live and neutral lines without direct contact.

• Indicators: Input jack LED indicators for correct connection and safety.

• Data Features: Max/Min recording and Data Hold function for convenience.

• Safety: Overload protection on all ranges with low battery indicator and auto power-off feature.

• Extras: Built-in flashlight for low-light work environments.

• Power Supply: 2 × LR6 AA batteries (included).

• Packaging: Supplied in a colour box with test leads and instruction manual.

Technical Specifications:

• Display: 4,000 counts, True RMS

• DC Voltage: 400 mV / 4 V / 40 V / 400 V / 1,000 V

• AC Voltage: 4 V / 40 V / 400 V / 750 V

• DC Current: 40 μA / 40 mA / 400 mA / 10 A

• AC Current: 40 mA / 400 mA / 10 A

• Resistance: 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ

• Capacitance: 10 nF to 100 mF (8 ranges)

• Frequency: 10 Hz to 1,000 Hz

• Features:

  • Phase sequence measurement

  • Non-contact voltage detection (NCV)

  • Live/neutral line identification

  • Diode test

  • Max/Min memory & data hold

  • Auto power-off

  • Low battery indication

  • Built-in LED flashlight

Why It’s Worth Having:
The WADFOW WDM2502 is built for precision and durability. With True RMS accuracy, phase sequence testing, and NCV safety detection, it handles professional electrical diagnostics with ease. Its backlit display, data functions, and flashlight make it the ideal multimeter for both fieldwork and workshop use.

Suggested Uses:

• Electrical and electronic system diagnostics.

• Industrial maintenance and 3-phase line testing.

• Residential and commercial electrical troubleshooting.

• Ideal for electricians, engineers, and advanced DIY users.
